Concrete Slab and Retaining Walls

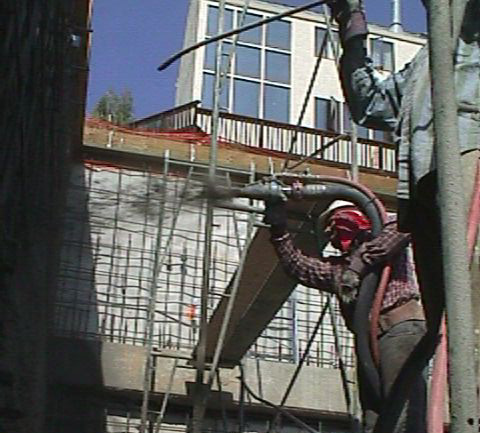

Nozzleman placing high-velocity shotcrete to retaining wall.

Select Photos:

Concrete Slab Work:

• Laying out the forms. Note the V-shaped rock pattern in the rear wall -- left there by a ravine about 10 million years ago.
• Forms and rebar grid for upper slab, 17 ft above street level.

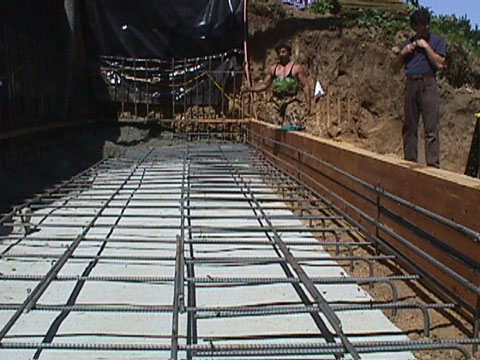

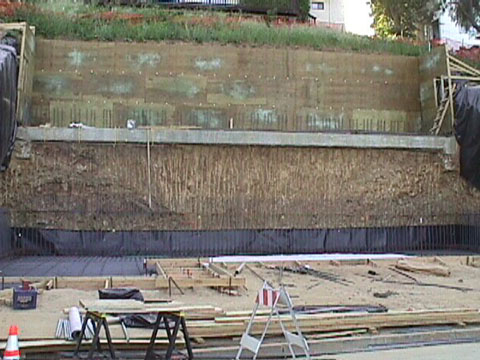

• Forms and rebar grid for lower slab, 3 ft above street level.

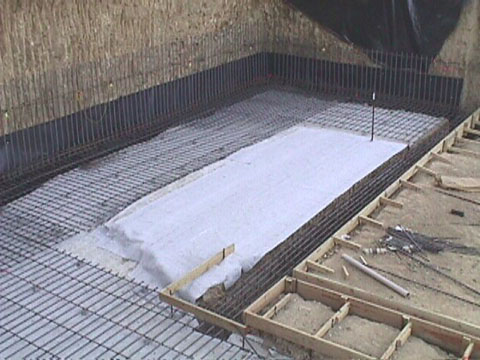

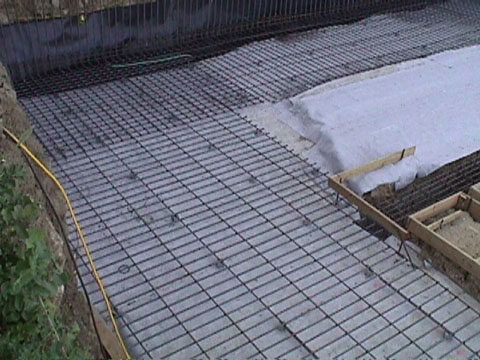

• Lower rebar grid. The white sheet material is bentonite clay on a HDPE substrate. It takes the place of standard gravel bedding.
• Top and bottom slab locations.

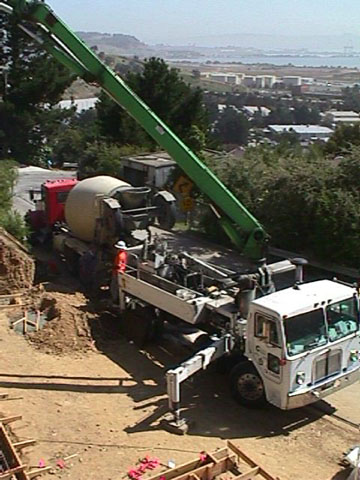

• Pumping truck with 70ft boom, for delivering concrete.

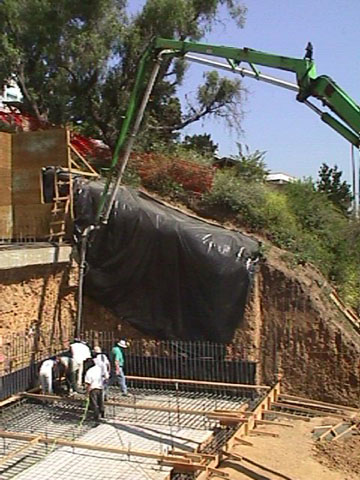

• Boom arm and operator surgically placing concrete. Two teams with vibrators remove voids deep in the 18" pour.

Retaining Walls:

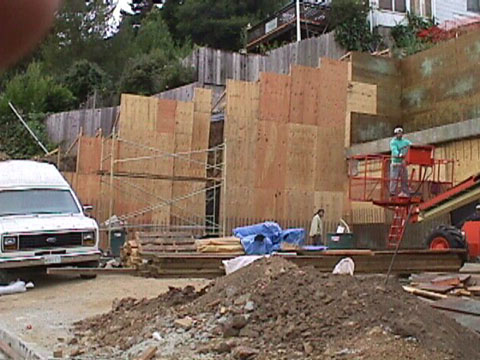

• Installing plywood back forms.
• North side forms, with fireplace box at top.

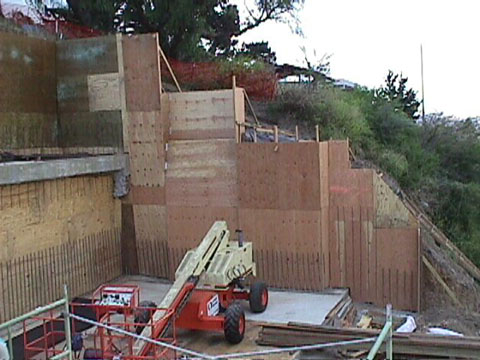

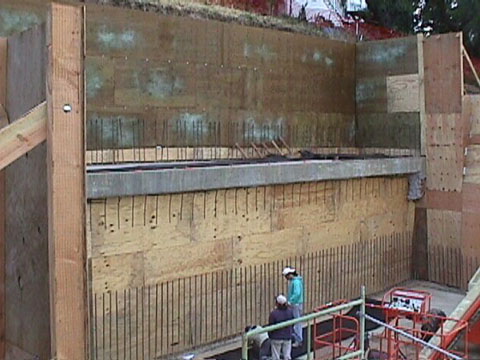

• Forms for upper and lower rear retaining walls.

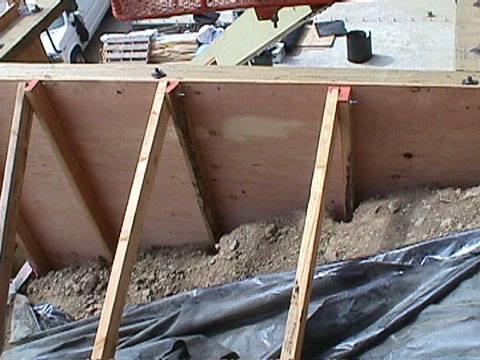

• Form detail. The back forms mount directly to the dirt, eliminating over-excavation and backfill.

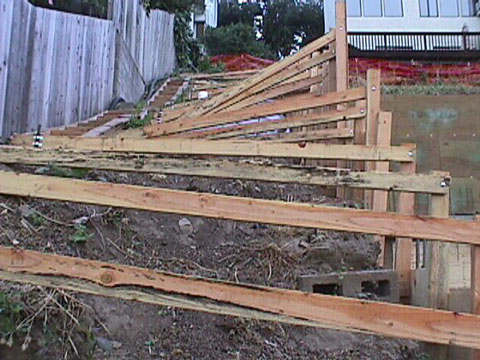

• Lateral braces at the top of the forms.

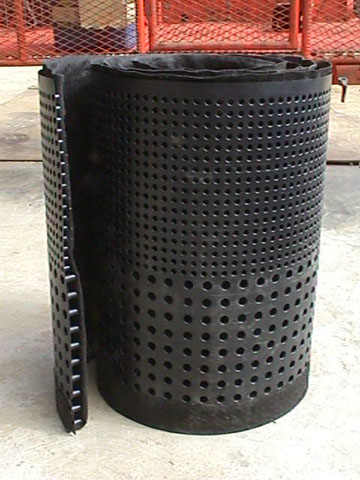

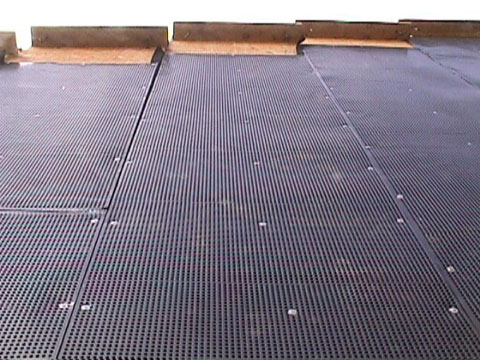

• Detail of the 3D drainage core for the retaining walls. This is used in place of the standard thick pea-gravel backfill used behind retaining walls.
• Drainage core applied to the plywood forms.
• South wall form with drainage core.

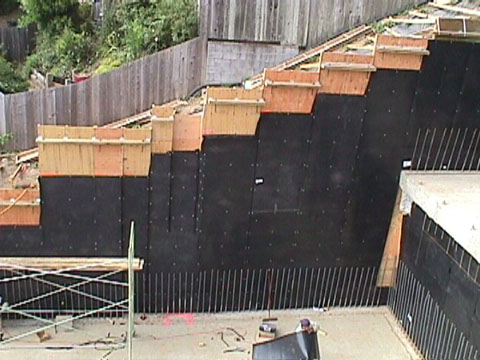

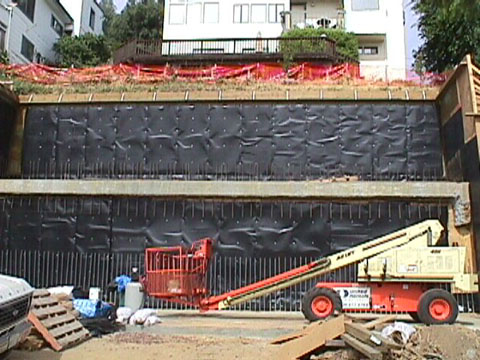

• Upper and lower rear retaining wall forms with drainage core.

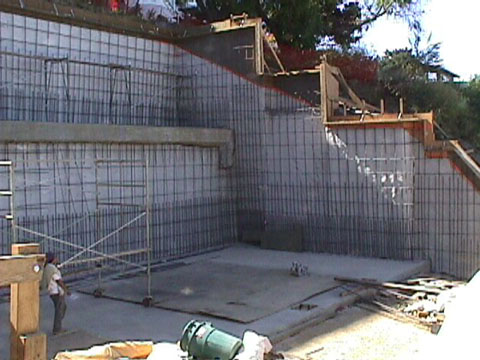

• Forms coated with bentonite clay, and structural rebar curtains in place.

Shotcrete Placement:

• The hydraulically driven high pressure concrete pump.

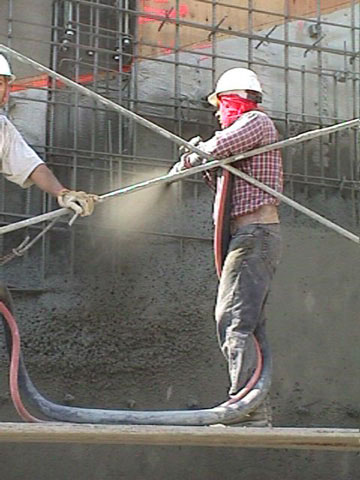

• Shooting the high pressure concrete to the rebar curtains.

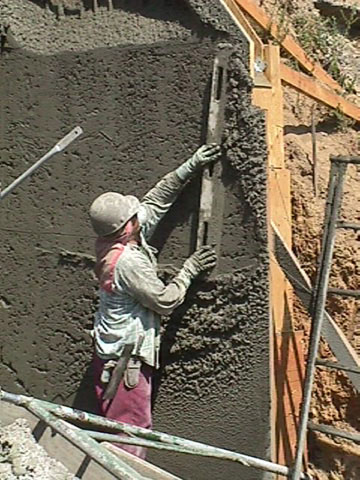

• Screeding the shotcrete to the piano wires.

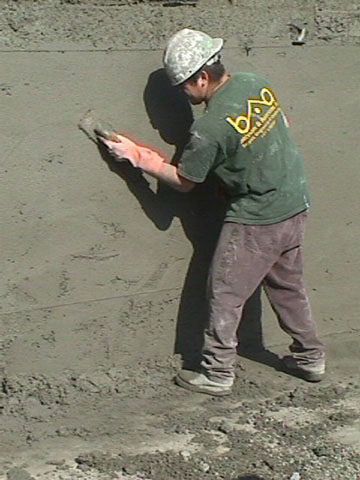

• Applying the rubber float finish.

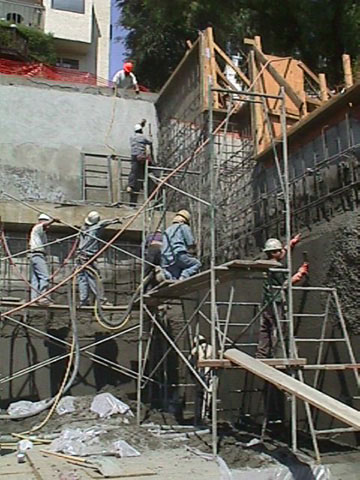

• The shotcrete crew, working their way vertically.
• The morning after. All shotcrete work complete.

Backfill:

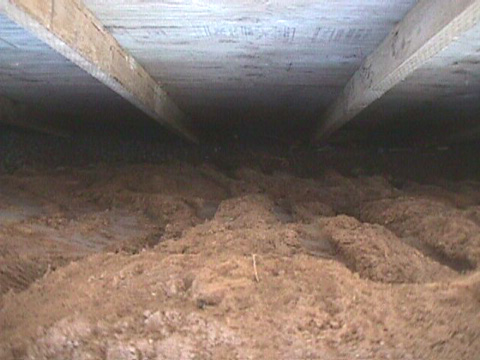

• The 26ft deep crevice around the retaining walls, awaiting drainage rock.
• Transporting and placing the gravel, using a 140ft long chute.

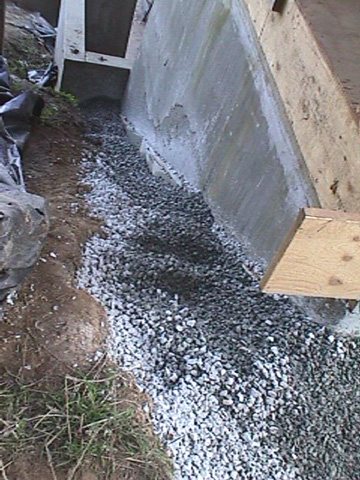

• Finished placement of 80 tons of drainage rock.
