Engineering Details

Structural:

• Bolt patterns for anchoring the front tubesteel structural columns, mounted on grade beam.

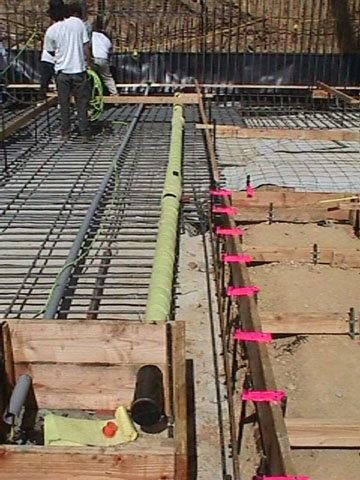

• Underslab utilities and screed lines awaiting concrete.

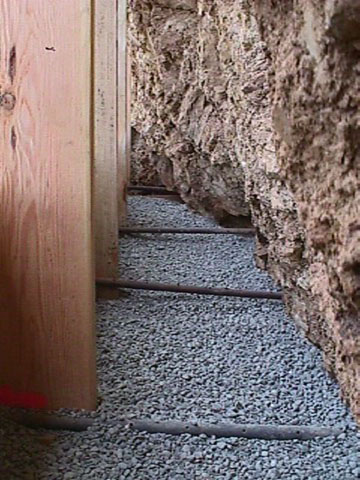

• Gravel fill, in one area with an unstable excavated face.

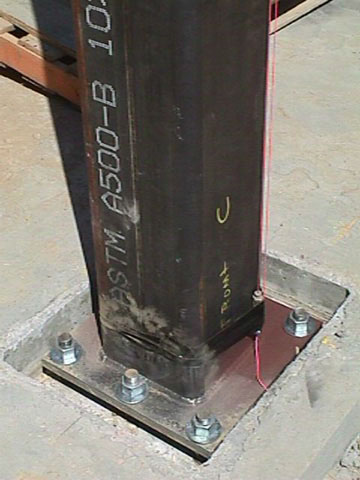

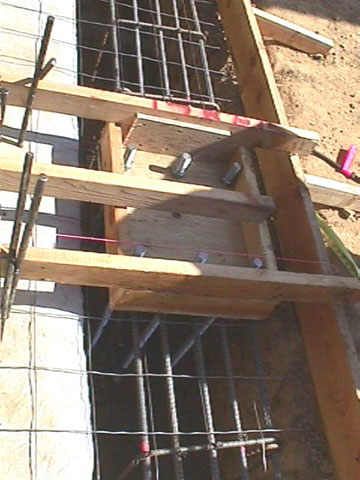

• Detail of the front column bolt patterns.

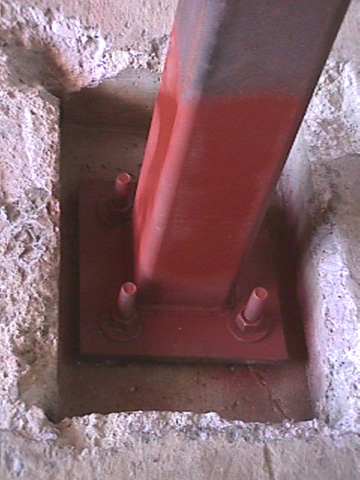

• Detail of the 4X4 column bolt pattern.
• All structural steel in place.
• Welding the steel hangers for the 6X12 beams.
• 3X12 floor ledgers bolted to the foundation walls.

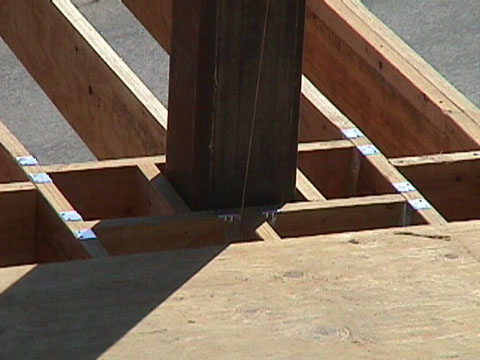

• Microlam pattern, around column (above)

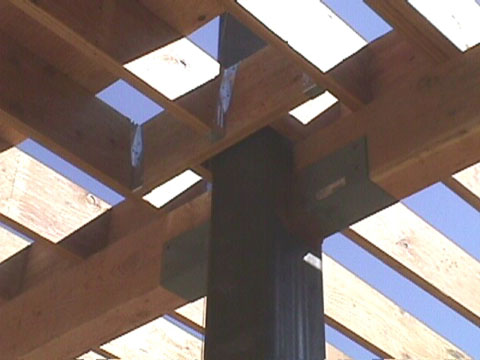

• Microlam pattern, around column (below)

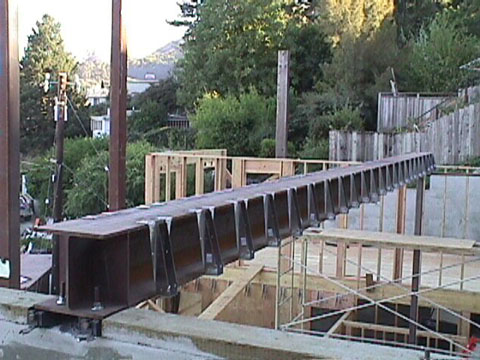

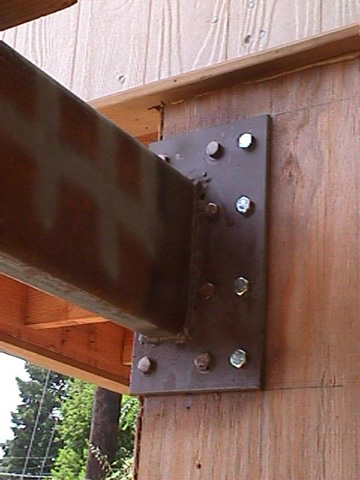

• Joist hangers, welded to I-Beam.

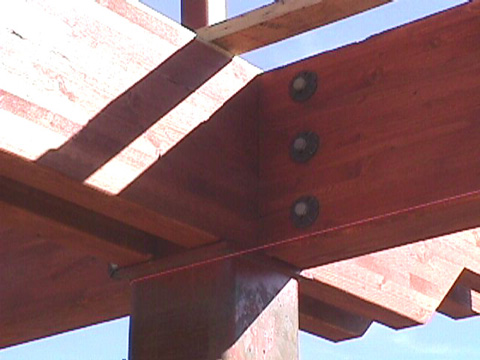

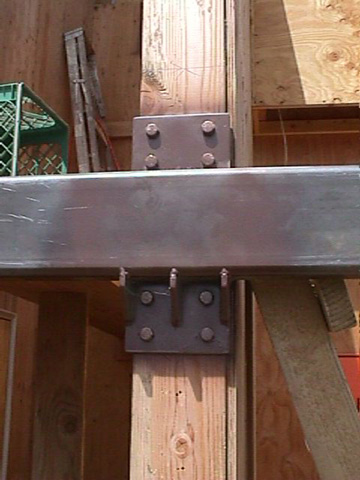

• Column 'A' to glulam connection.

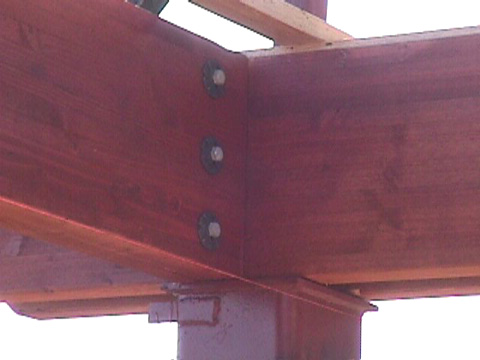

• Column 'C' to glulam connection.

Stairs:

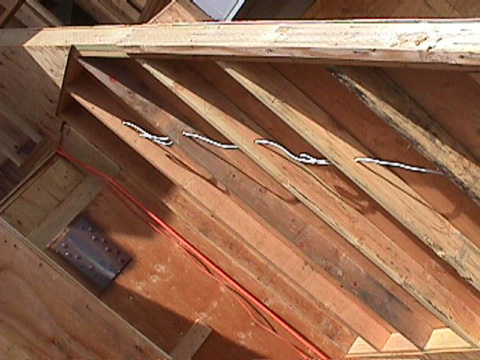

• Mounting Plate, at top of exterior stairs

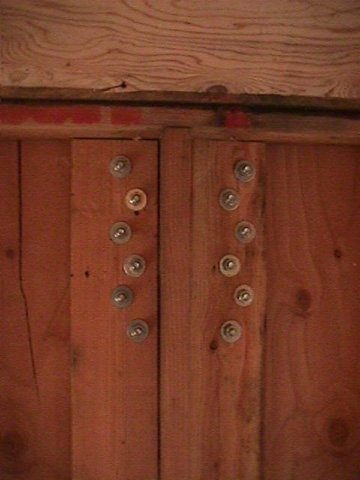

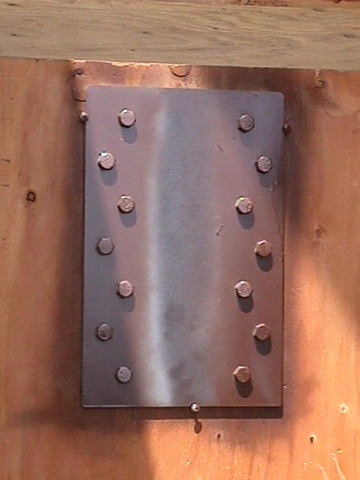

• Plate Bolt Pattern to wall
• Mounting Plate, at exterior landing
• Plate Bolt Pattern to wall
• Mounting Plate, at base of exterior stairs

Electrical:

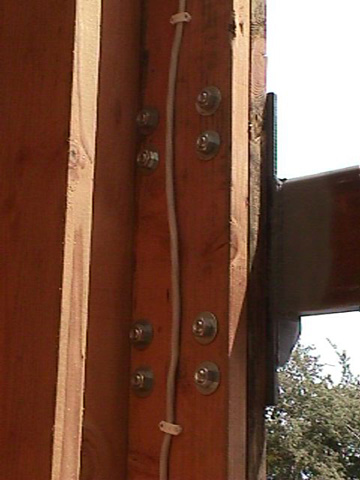

• Exterior Stair wall electrical 01

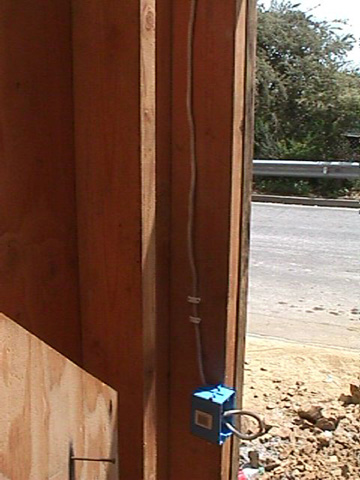

• Exterior Stair wall electrical 02
• Exterior Stair wall electrical 03

Front Window Mullions:

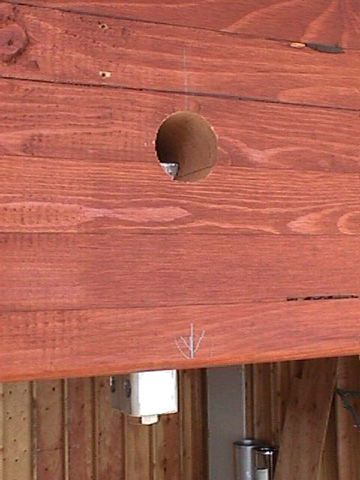

• Mullion connection to glulam

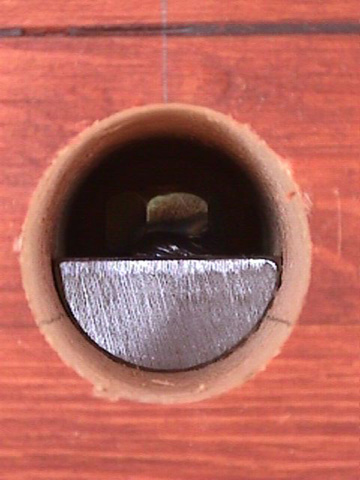

• Detail 1

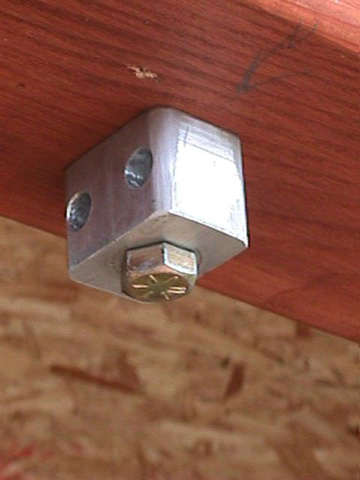

• Detail 2

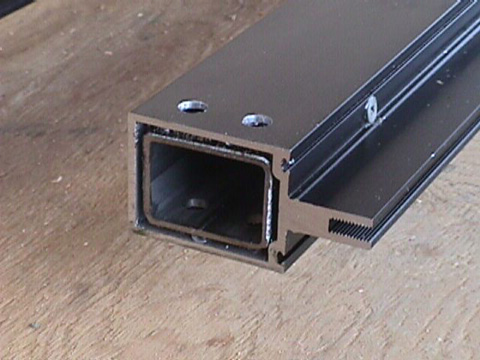

• Steel reinforcement inside mullion extrusions

Insulation:

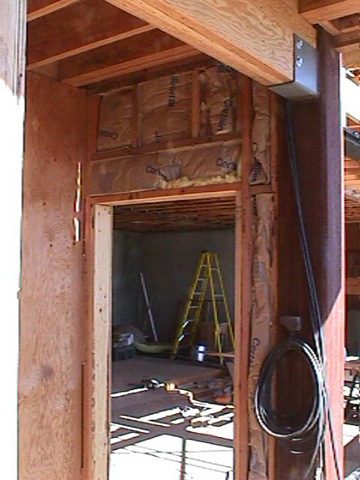

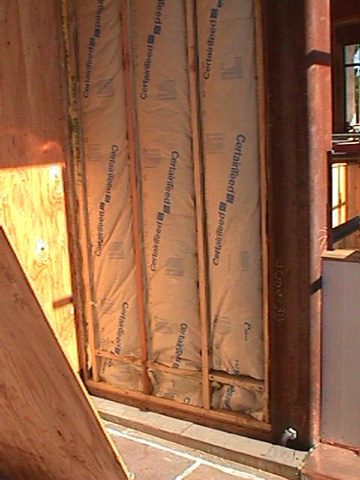

• Exterior wall at Entry Door
• Exterior wall at Hot Tub
