Mechanical, Plumbing, Electrical

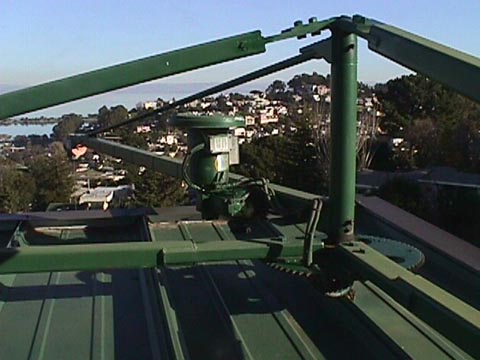

House crane, mounted permanently on roof. 14ft swing boom has 660lb lift capacity.

Select Photos:

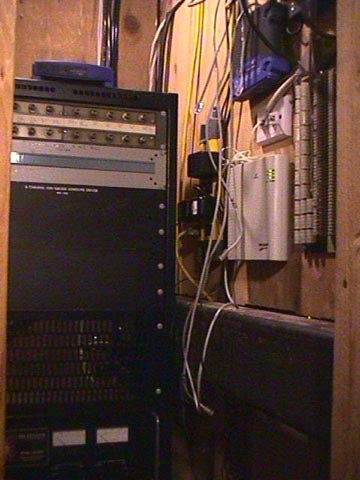

• Mechanical Alcove, with instrumentation rack and telecom gear.

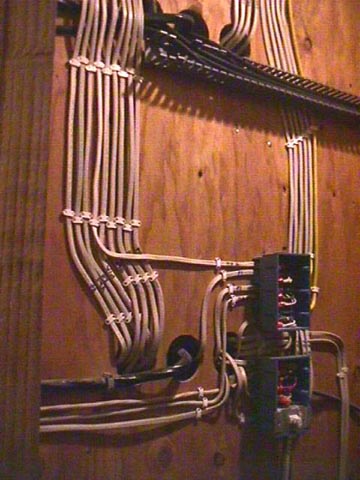

• Wiring fan-out from primary and secondary breaker panels into utility shaft.

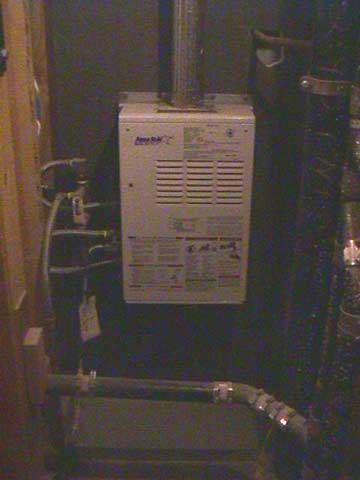

• The Takagi on-demand water heater, mounted in the mechanical alcove.

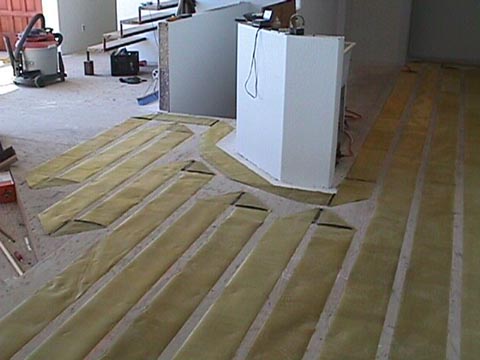

• Floor heating element array placed in Kitchen Area, awaiting finished floor.

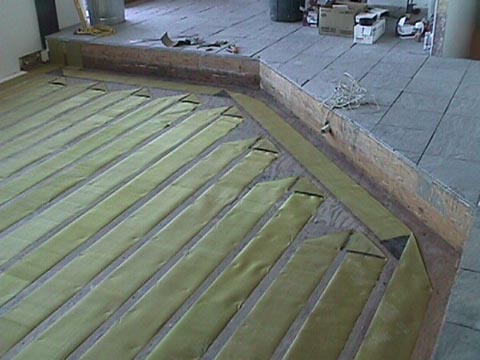

• Floor heating element array placed in Living Area, awaiting finished floor.

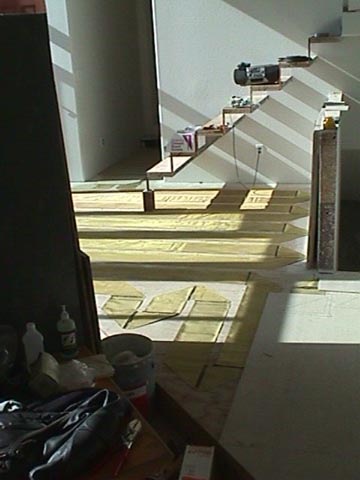

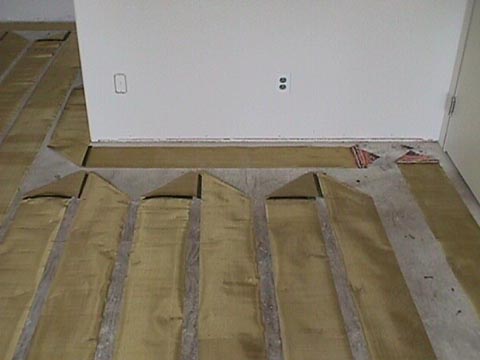

• Floor heating element array placed in entry area.
• Closeup of heating arrays, and termination points in corner.

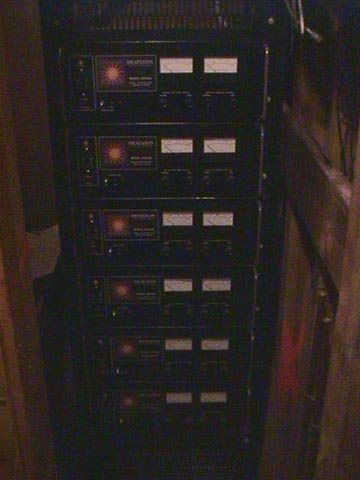

• Radiant Electrical Floor Heat Controllers, mounted in alcove rack. Six zones, total.

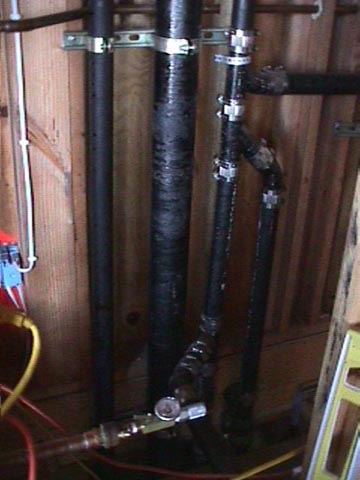

• Base of the plumbing stack, looking up the utility shaft.

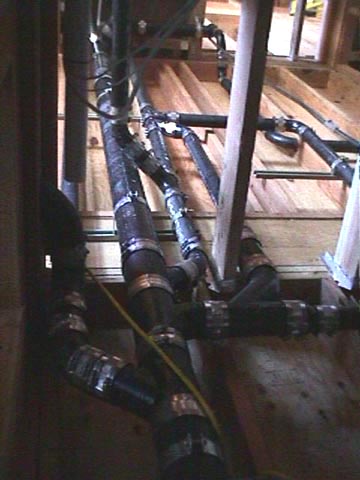

• Midway up the plumbing stack, at the kitchen level.

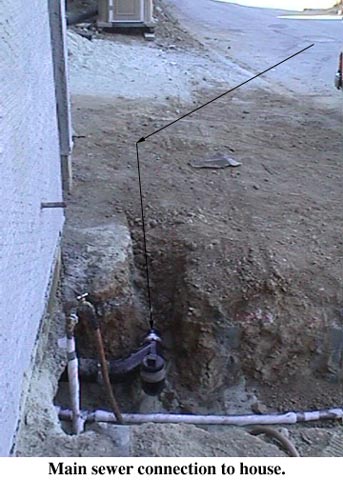

• Plumbing connection to existing manhole in street.
