Framing Details

Select Photos

Structural Steel:

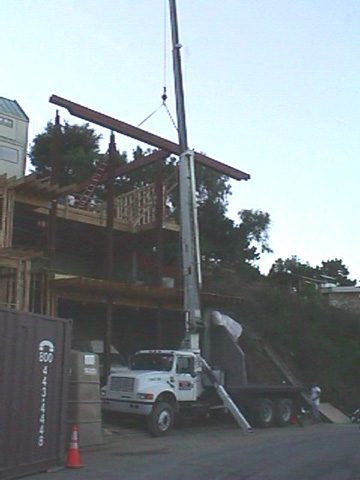

• Chip Flynn and Leo Garza placing the top floor I-Beam into position.

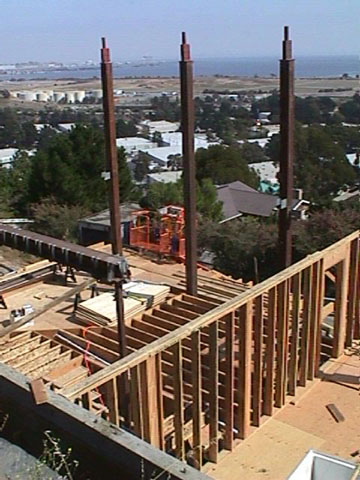

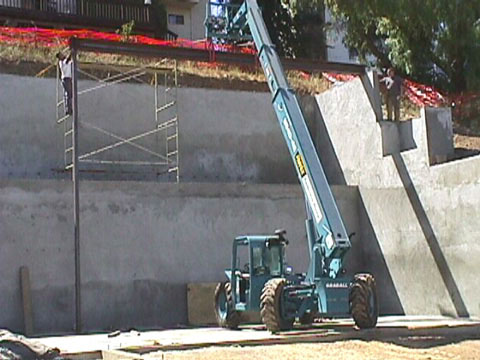

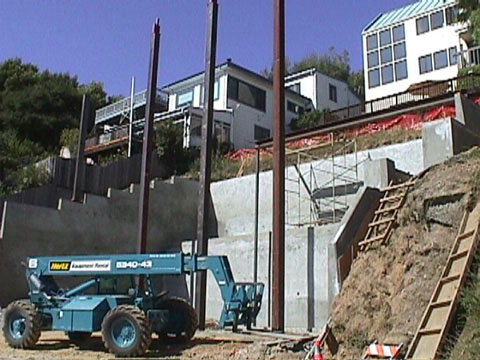

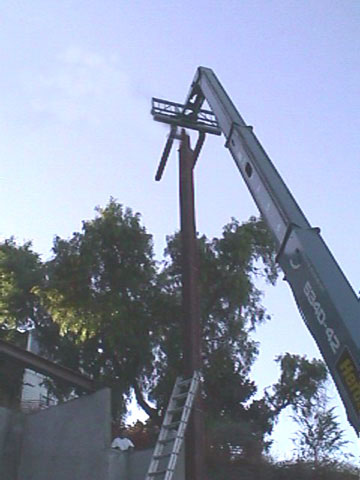

• Raising the 37 foot steel front columns into position.

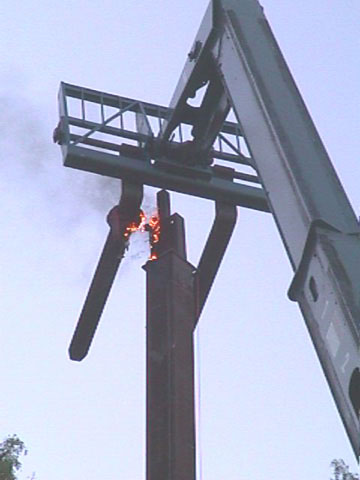

• Burning away a caught rigging strap, using a torch mounted on the end of an extension pole.
• All structural steel in place.

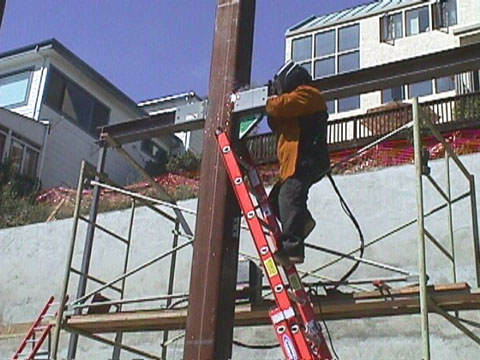

• Welding the steel hangers for the 6X12 beams.

Framing:

The 'Mission Impossible' framing crew, from left to right: Malcolm Hassell, Sandra Peterson, Eugeneous Barnes (Lead Framer), and Matt Arnold

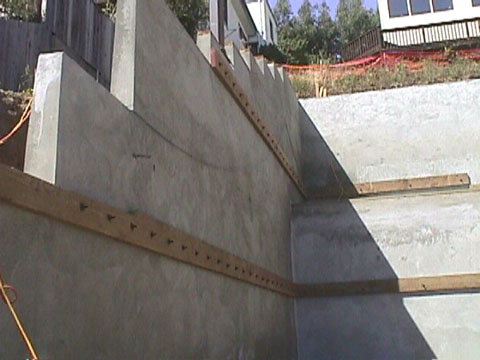

• Setting the 3X12 floor ledgers to the foundation walls.

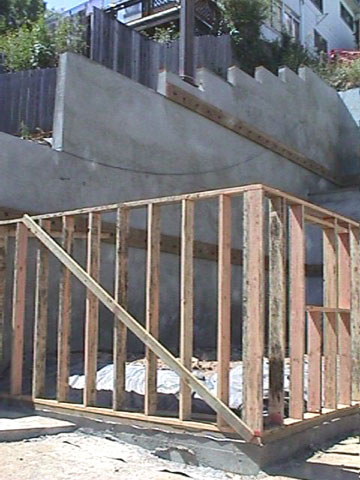

• Framing in the crawlspace area.
• Layout of the first floor joists.

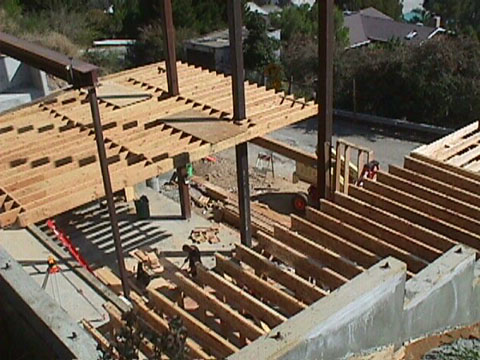

• Looking down to the garage floor, through the first floor and mezzanine.
• Bedroom 1 (1 of 2)

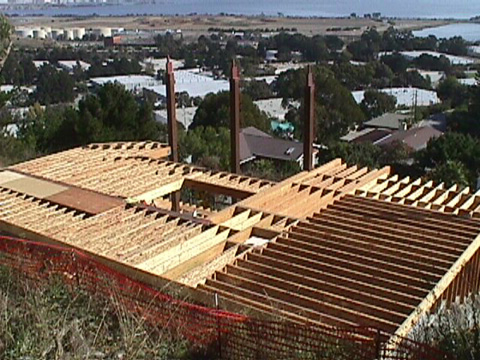

• Layout of Living room floor, with stairwell opening.
• View of the work, from the top of the lot.

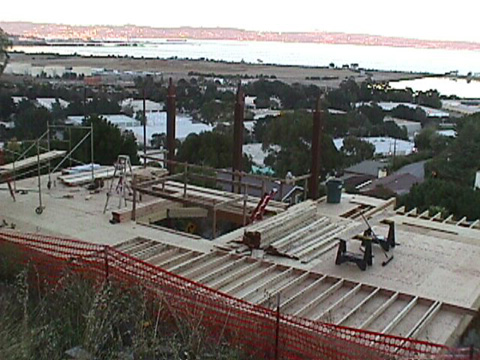

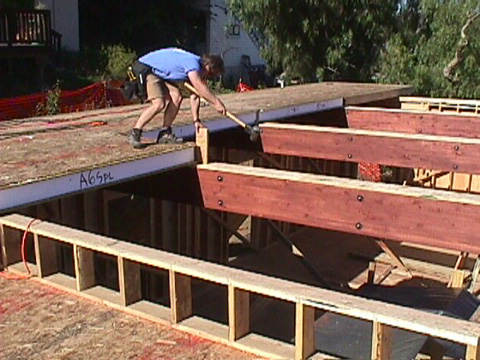

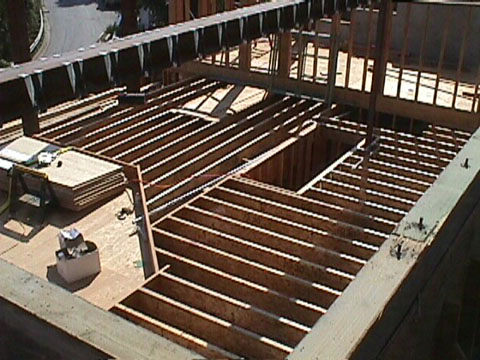

• I-joists and microlams in place for top floor level.

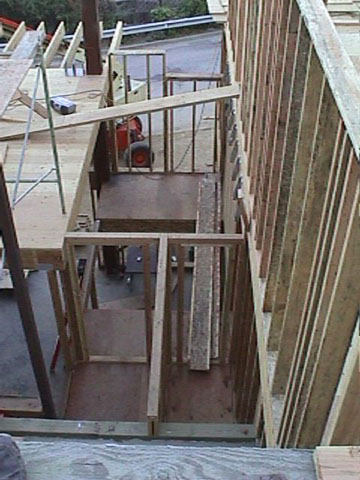

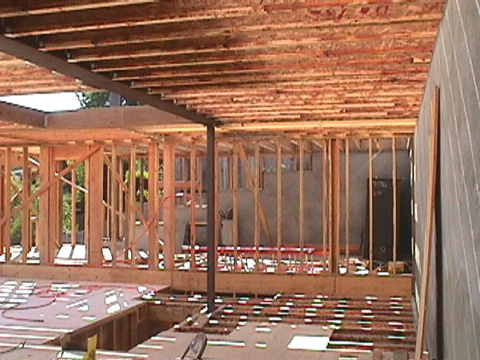

• View of kitchen area, and the stairwell to the mezzanine and garage levels.

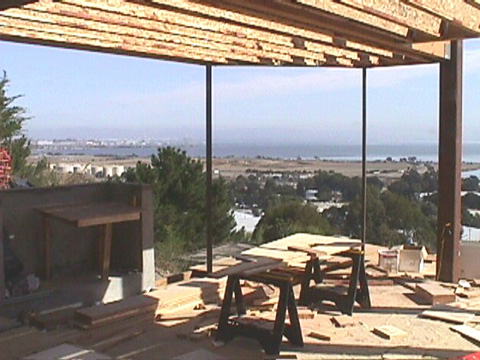

• View of the living area, from the kitchen.

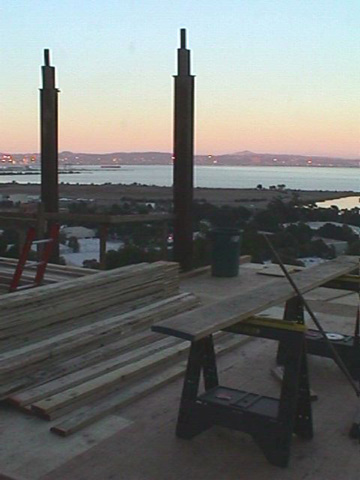

• Top floor at sunset, ready for placement of the walls and roof beams.

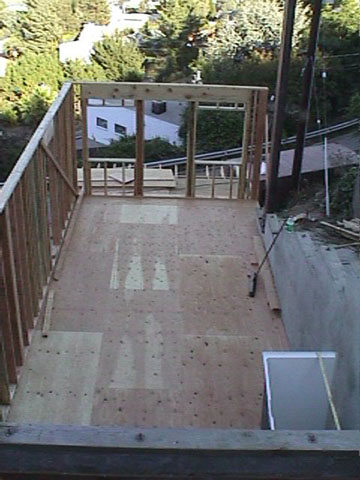

• Framing and raising the top floor walls.

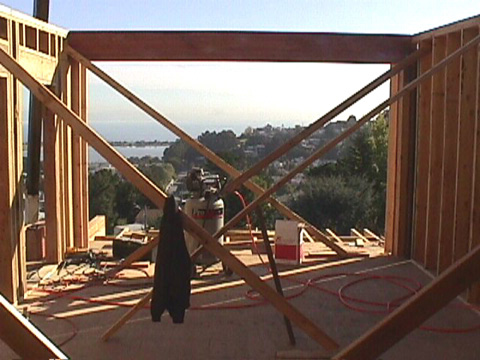

• Master bedroom framed and sheared, with front glulam beam in place.

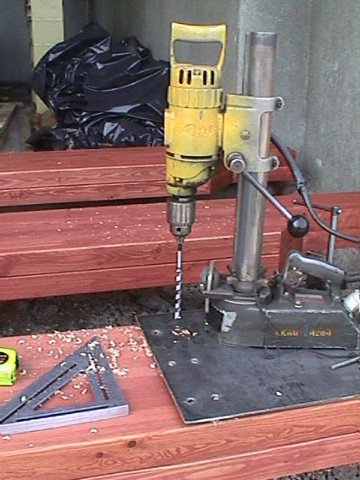

• Drilling the bolt patterns for the 16" roof beams.

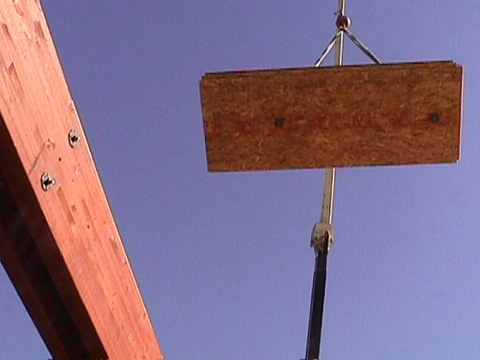

• The1100 lb glulam beam groups for the roof being hoisted into position.

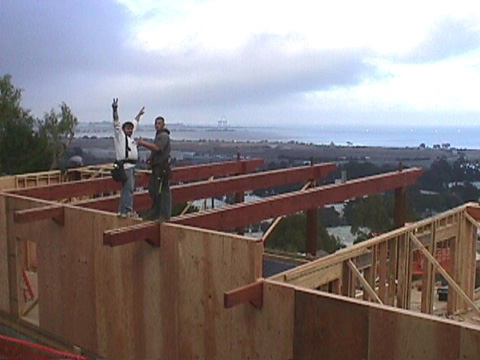

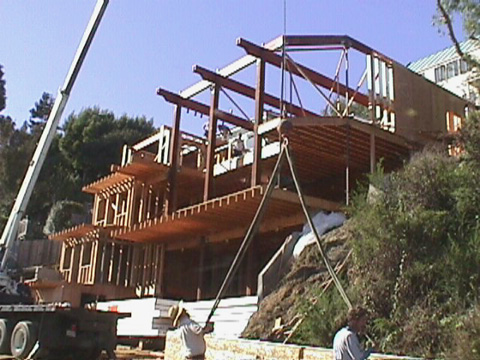

• Eugene and Matt setting the roof beams to the front support columns.

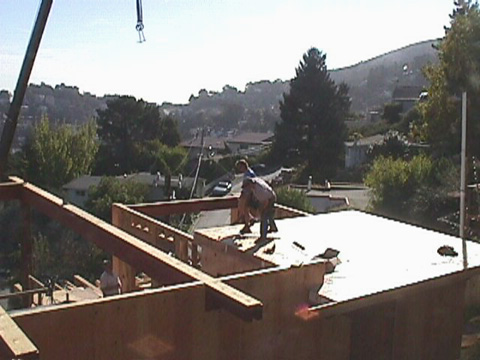

• Eugene and Matt ready for the SIP panels.
• The SIP panels are staged in sequence on the ground.
• The first SIP panel is airborne.
• Roof over master bedroom partially laid out.
• Knocking panels into position.

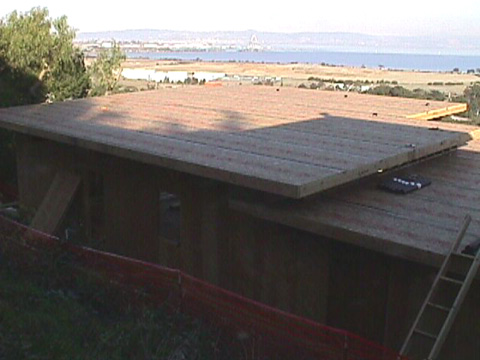

• Finished lower roof section.

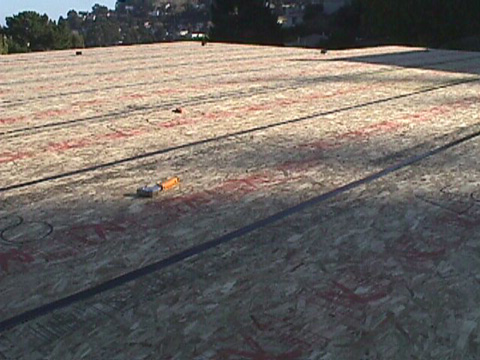

• Complete roof, awaiting metal roofing.
