The 40,000 Watt Experimental Coil

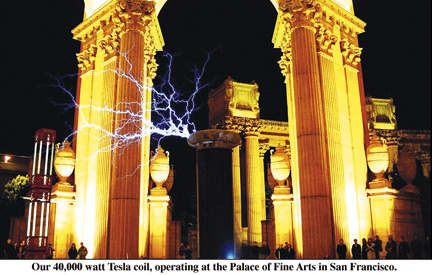

Originally constructed in 1990 by G. Leyh for the Seattle SRL show, this 40,000 watt Tesla coil has served as a test bed for several design improvements to the traditional Tesla coil topology.  This coil was the first ever to feature a DC resonant charging power supply, thus allowing operation with three-phase power and with improved load balancing and power factor. A variable-speed rotary gap provides control of the output power, eliminating the need for large Variac transformers on the mains. The coil is now located at the Lightning Lab's San Francisco Facility, and operates as a design study platform.

Design Upgrades to the 40kW Experimental Coil

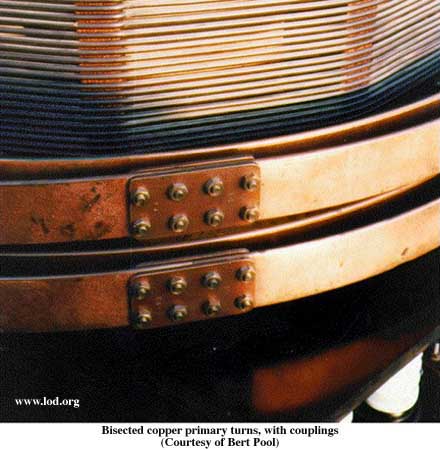

Closeup view of the bisected primary coil

New Technical Specifications

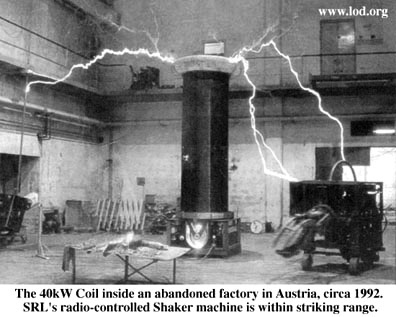

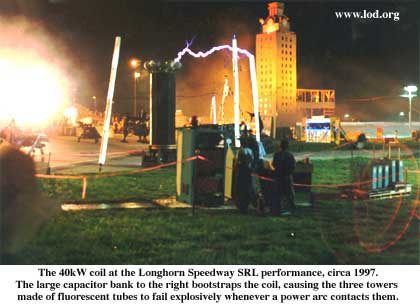

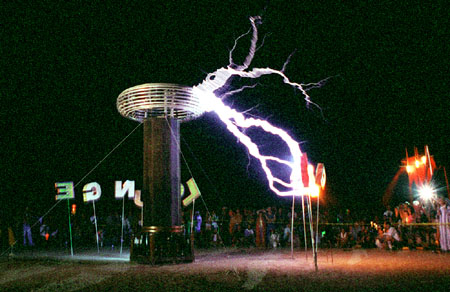

More photos of the 40kW Experimental Coil

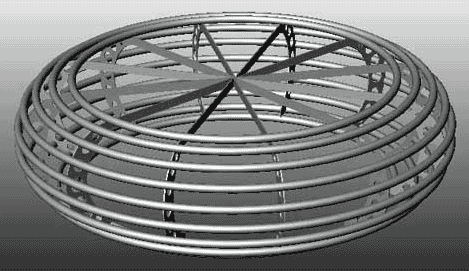

Secondary Toroidal Capacitance. Live measurements performed in 1998 of the sphere-to-arc currents on the Electrum coil demonstrated the abundant presence of dart leaders in the advancing streamers. In order to enhance the dart leader performance we increased the capacitance of the toroidal top electrode by nearly doubling its physical size. Even though the larger toroid reduces the output voltage, the improved effectiveness of the advancing dart leaders more than compensates by providing the leaders a low-impedance local reservoir of charge.

Photos of the toroidal electrode construction
